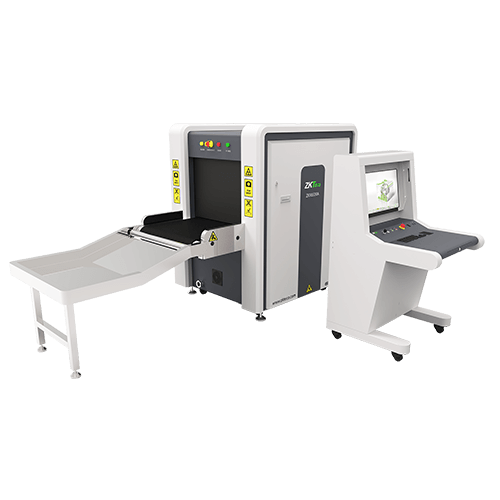

ZKX6550A

Description

Specifications

Tunnel Size

W655mm × H505mm

Speed

0.20 m/s

Height of Transmission Belt

700 mm

Maximum Load

≤180 kg (Adequate distribution)

Wire Resolution

38AWG

Space Definition

Horizontal Φ1.0mm \ Vertical Φ2.0mm

Penetrate Definition

34 AWG

Penetration

10mm steel board

Monitor

21.5 inch LED

System Function

High density alert, Explosive/ Drug auxiliary detect, TIP, Luggage counter, date/time display, User management, Training.

Film Safety

ASA/ISO1600 standard of film safety

X-ray System

Tube Voltage

100KV

Cooling

Seal oil cooling/ 100%

Single Inspection Dosage Rate

≤1.0 μ Gy

Radiation Leak Dosage

0.1 μ Gy/h (5cm from the surface)

Installation Specification

Package Size

L2240mm × W1170mm × H1755mm

Console Desk Size

L830mm × W800mm × H1330mm

Package Weight

640KG+100KG (Console desk)

Power Consumption

1 kVA

Noise

53.8 dB (A)
